Ecoguss yer süzgeci

Maksimum gereksinimler için yenilikçi çözüm.

Dikey çıkışlı Ecoguss proje süzgeci

Standartları belirleyen bir inovasyon: Ecoguss yer/çatı süzgecimiz, polimer ve metalin özel avantajlarını bir araya getiren, özel olarak geliştirilmiş aynı isimli kompozit malzemeyi kullanır. Bu nedenle Ecoguss , pik dökümden yapılmış süzgeçler için ekonomik ve montajı kolay bir alternatiftir. Aynı zamanda hijyenin yanı sıra yangın koruması ve ses yalıtımı açısından da büyük avantajlar sunar ve bu nedenle özellikle oteller, hastaneler veya yüzme havuzları gibi kamu binaları için uygundur.

Ecoguss isteğe bağlı olarak yatay veya dikey çıkışla ve DN 50 ile DN 100 arasında değişen farklı nominal çaplarda sunulmaktadır.

Avantajları  Ürün tanıtımı

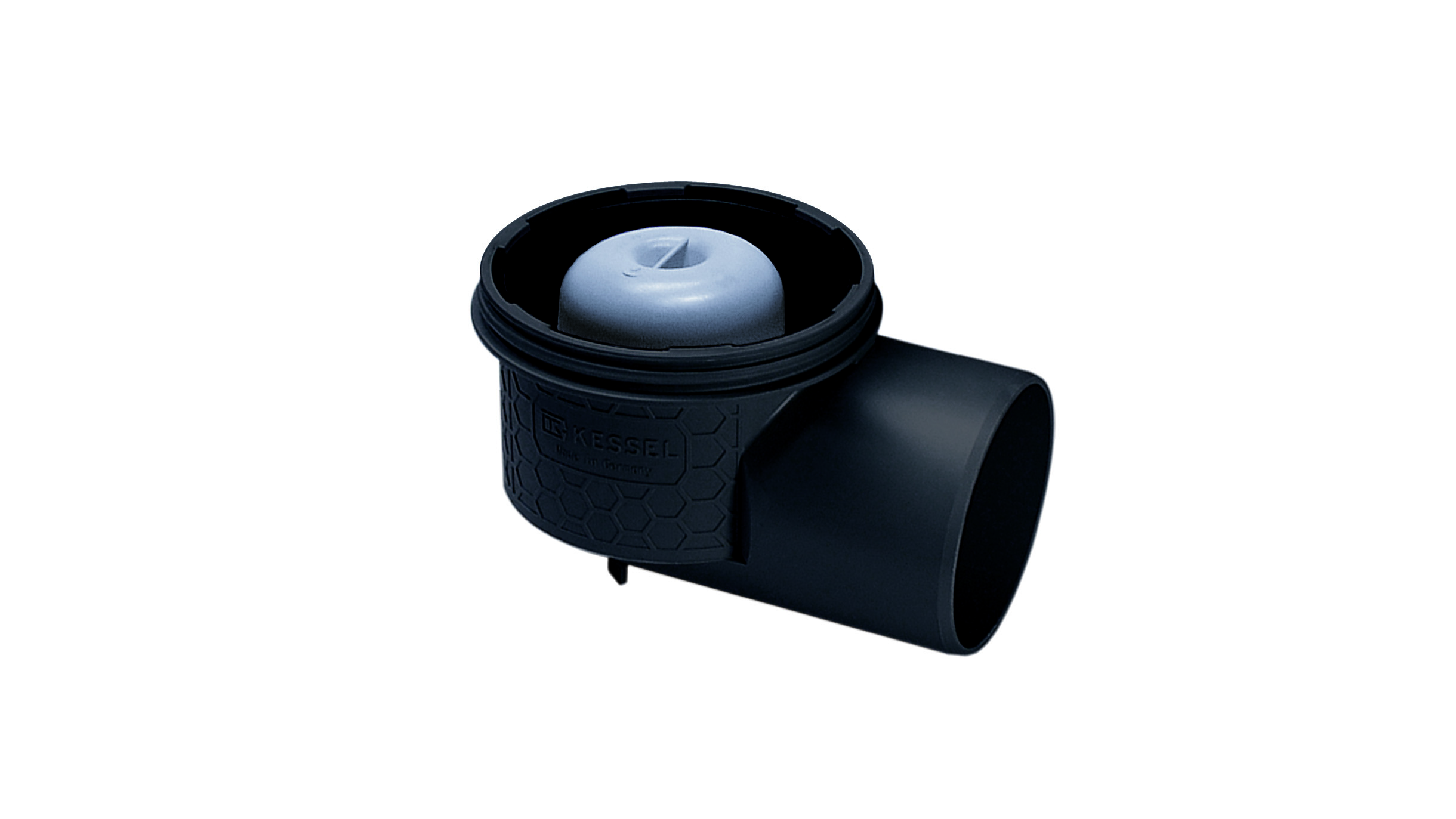

Yatay çıkışlı Ecoguss ana gövde

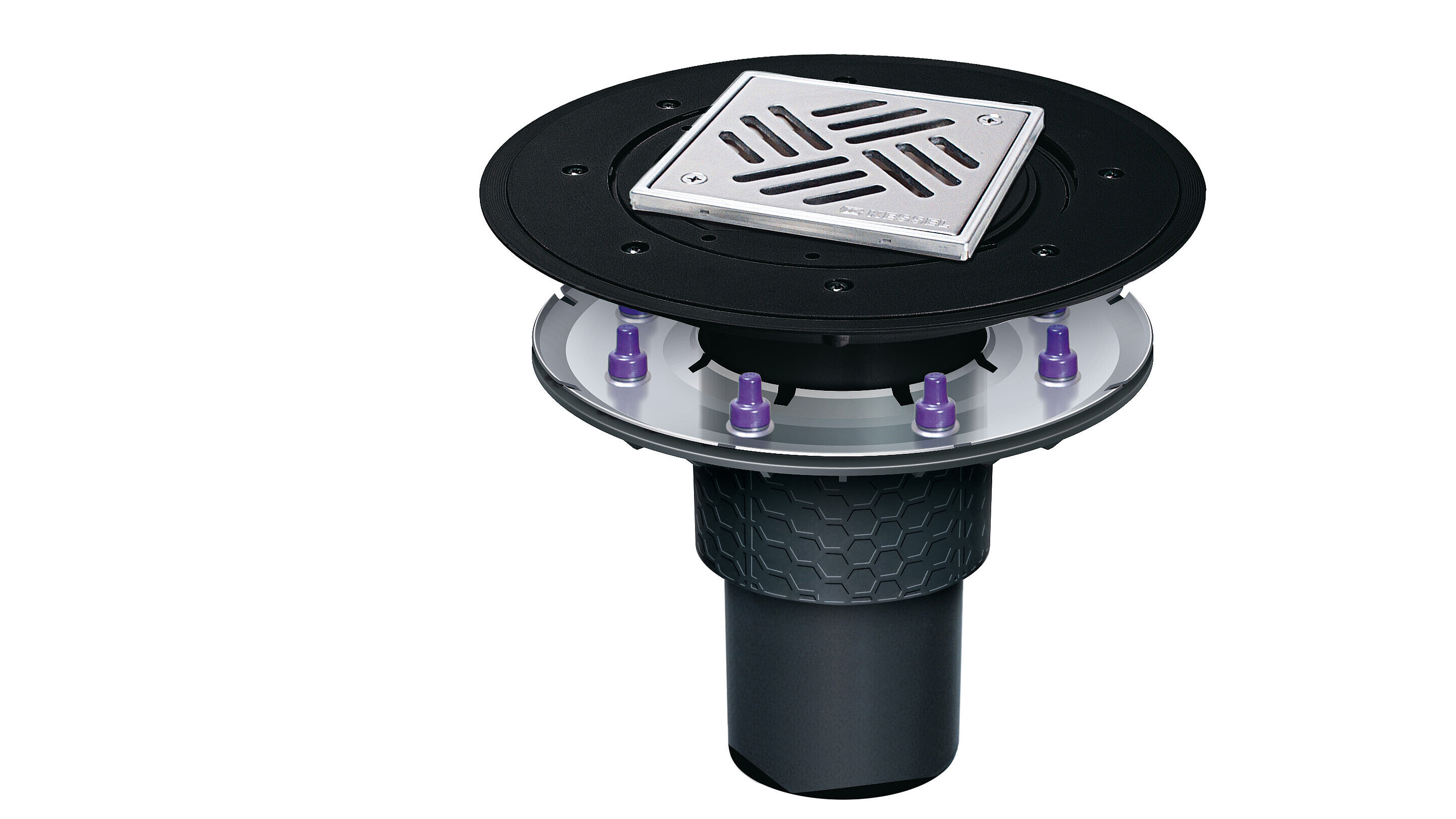

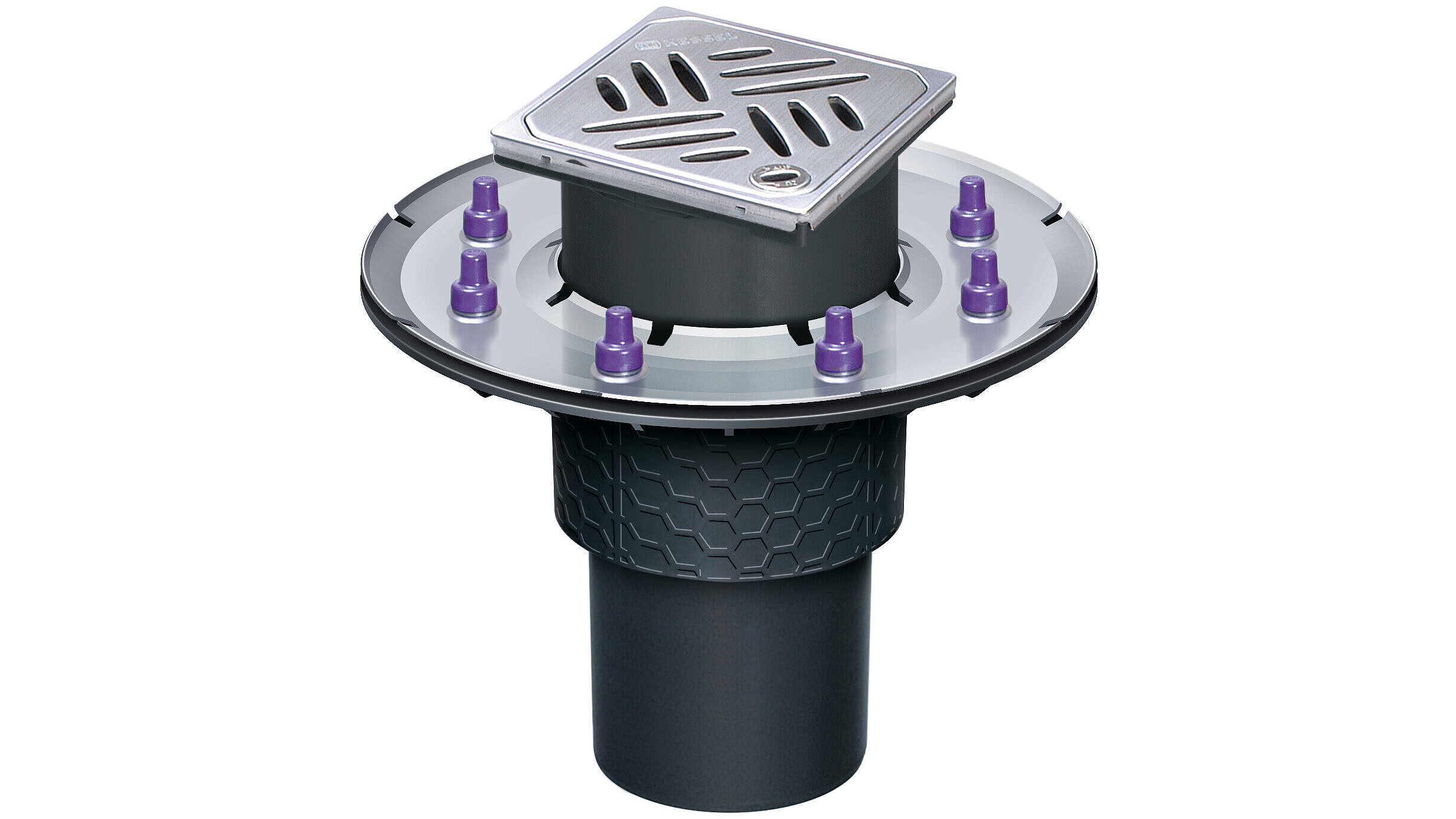

Basınç contası flanşı ve Lock & Lift özellikli Kessel tasarım kapağa sahip dikey çıkışlı Ecoguss süzgeç gövdesi
Basınç contası flanşı ve Lock & Lift özellikli Kessel tasarım kapağa sahip dikey çıkışlı Ecoguss süzgeç gövdesi

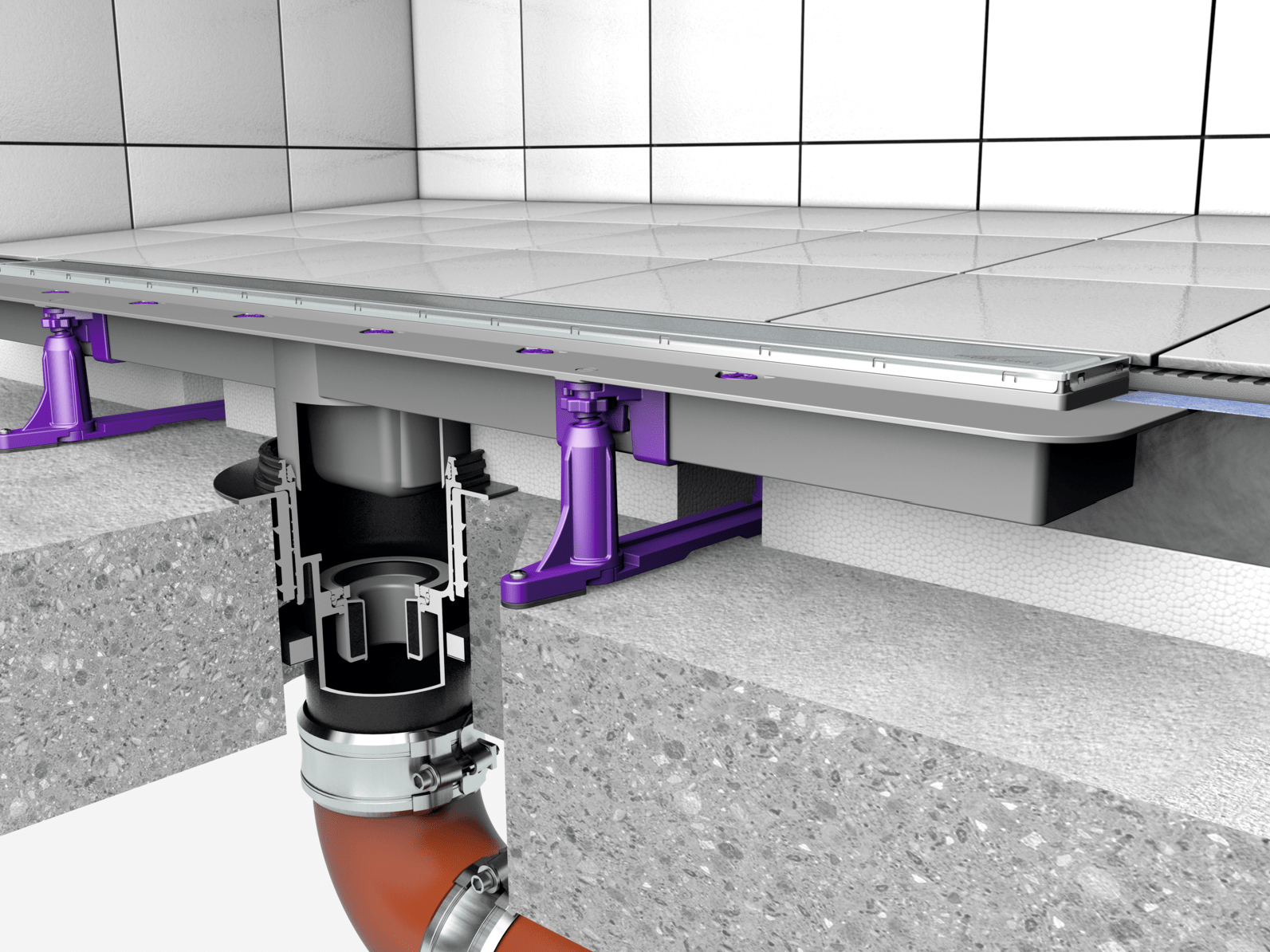

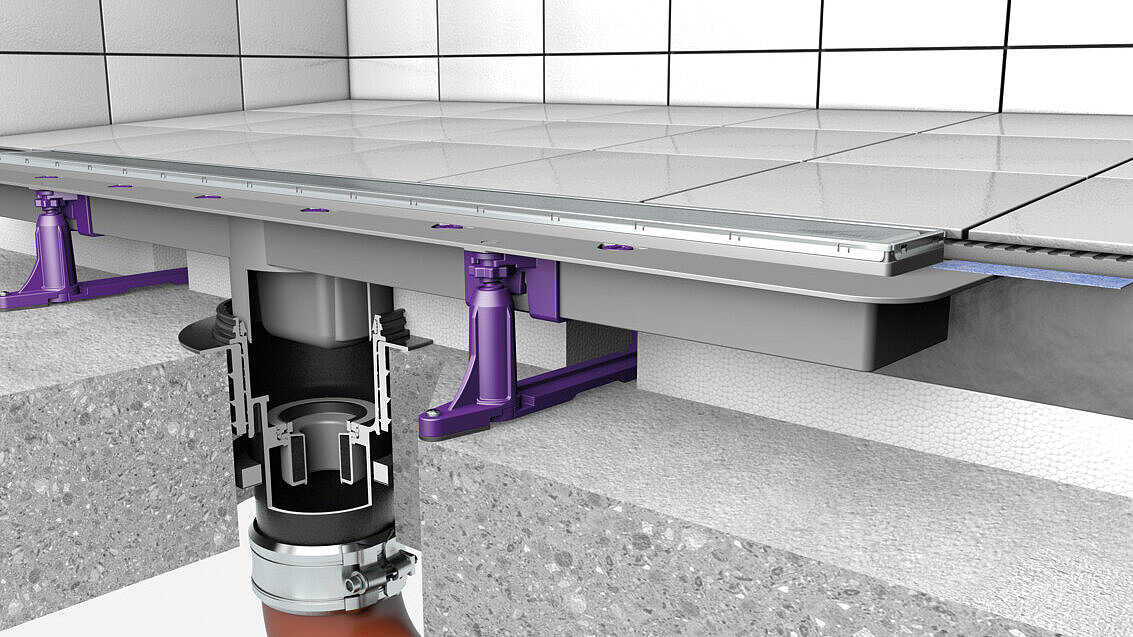

Linearis Comfort duş kanalına sahip Ecoguss yer/çatı süzgeci için montaj şeması

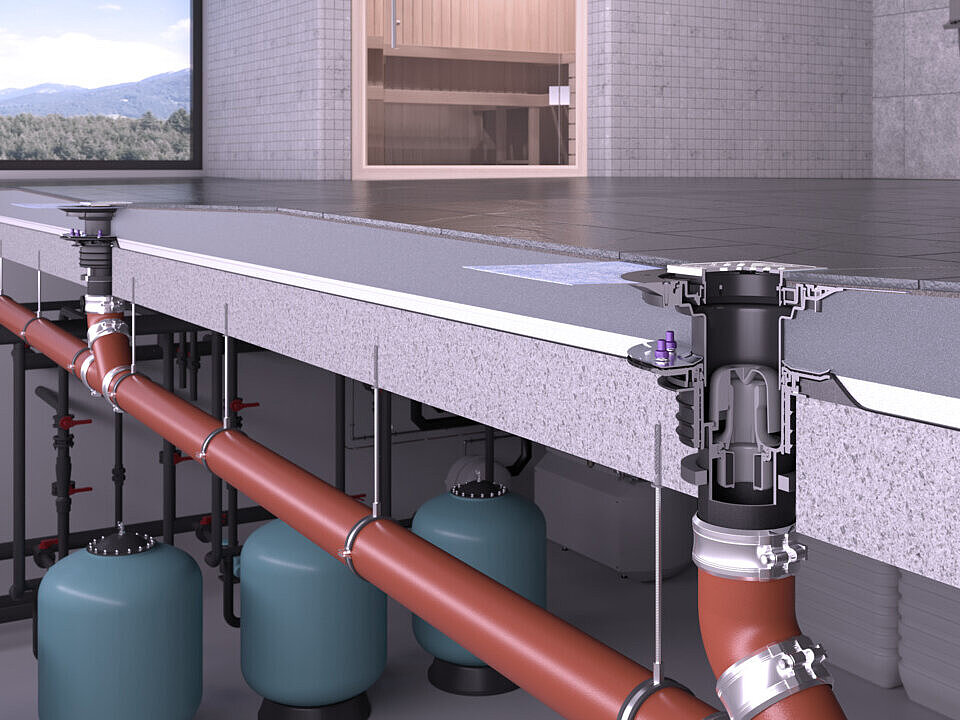

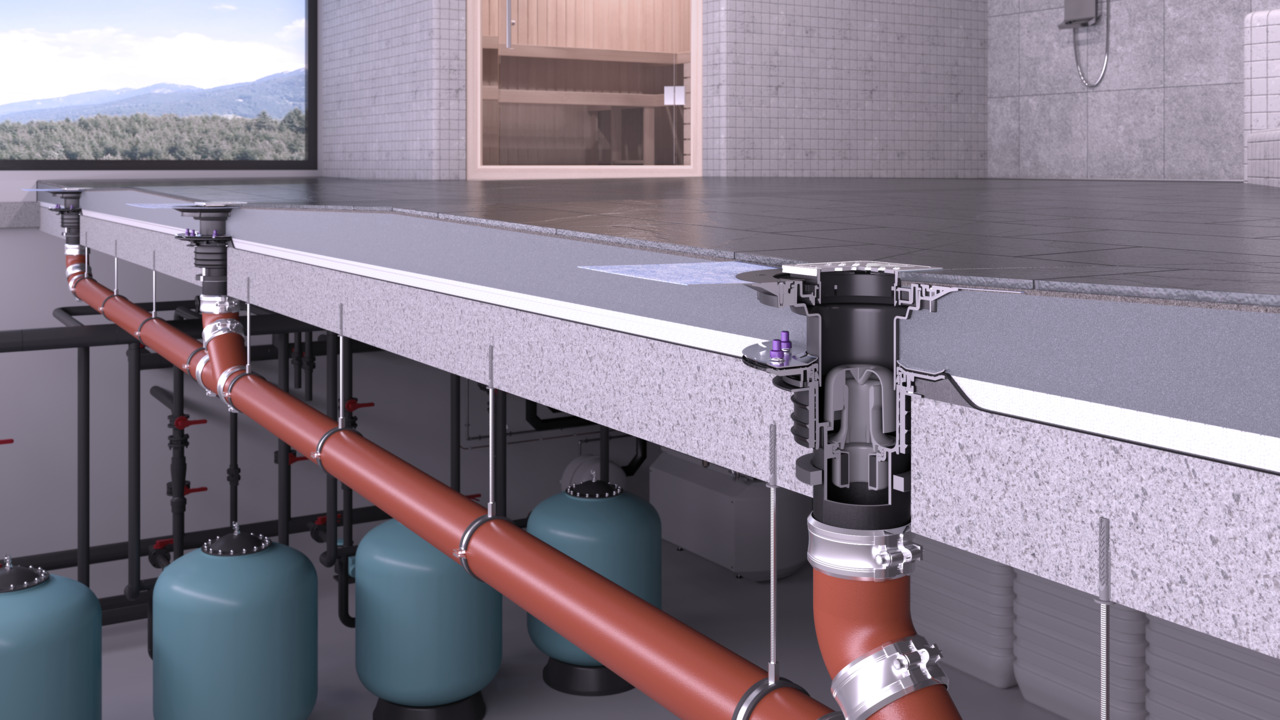

Sağlıklı yaşam alanında su yalıtımı ve basınç contası flanşı ile birlikte kullanım için Variofix sığ yataklı üst kısma sahip Ecoguss yer/çatı süzgeci için montaj resmi
Ecoguss süzgeç gövdesinin ayrıntılı görünümü

Her iki dünyanın da en iyisi: Ecoguss'tan yapılmış yer süzgeçleri

Dayanıklılık, rahatlık, temizlik – tüm bunlar ileri teknoloji ürünü kompozit malzememiz Ecoguss tarafından sunulmaktadır. Bu yenilikçi malzeme, polimer ve metalin avantajlarını bir araya getiriyor: Dökme demirden üç kat daha hafif ve aynı zamanda sıcaklığa dayanıklı olmasının yanı sıra kimyasal ve mekanik strese karşı da oldukça dirençlidir. Ayrıca Ecoguss, tortu oluşumunu önleyen ve böylece güçlü bir kendi kendini temizleme etkisi sağlayan kaplamasız, pürüzsüz yüzeyi sayesinde aşındırıcı değildir ve son derece hijyeniktir.

En yüksek yangın koruması standartları

Yangın durumunda, yangın tahliye borularından geçerek binanın diğer bölümlerine yayılabileceğinden, su çıkışları risk oluşturur. Koruma amacıyla süzgeçlerimiz Fire-Kit yangın ve duman koruması eklentisi veya entegre yangın korumalı Quick-Fit boru geçiş contası ile donatılabilir. Yangın süzgeç gövdesine nüfuz eder etmez, içindeki yangın koruması bileşeni otomatik olarak şişer ve boru soketini alevlere ve dumana karşı kapatır. Hem Fire-Kit hem de Quick-Fit en yüksek yangına dayanıklılık sınıfı olan R 120'ye uygundur.

Yüksek ses yalıtımı etkisine sahip Ecoguss yer süzgeci

Bilimsel olarak onaylanmış ses yalıtımı etkisi

Ecoguss, Fraunhofer Enstitüsü tarafından ses geçirmezlik etkisi açısından test edilmiştir. VDI 4100 SST III uyarınca ≥ 14 dB(A) ve DIN 4109 uyarınca ≥ 16 dB(A) değerlerinde ölçüm sonucu alınmıştır. Bu, Ecoguss'un kanıtlanmış bir ses engelleme etkisine sahip olduğu anlamına gelmektedir.

Ecoguss project drain System 125


Vertical outlet

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48411.1148411.11 K 3 (EN 1253-1) 100 included Connection flange 48411.11
Show
48411.5148411.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48411.51
Show
48411.5348411.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48411.53
Show
48411.6348411.63 L 15 (EN 1253-1) 100 included Connection flange 48411.63
Show
48458.1148458.11 K 3 (EN 1253-1) 50 included Connection flange 48458.11
Show
48458.5148458.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48458.51
Show
48458.5348458.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48458.53
Show
48458.6348458.63 L 15 (EN 1253-1) 50 included Connection flange 48458.63
Show
48478.1148478.11 K 3 (EN 1253-1) 70 included Connection flange 48478.11
Show
48478.5148478.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48478.51
Show
48478.5348478.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48478.53
Show
48478.6348478.63 L 15 (EN 1253-1) 70 included Connection flange 48478.63
Show
48483.1148483.11 K 3 (EN 1253-1) 80 included Connection flange 48483.11
Show
48483.5148483.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48483.51
Show
48483.5348483.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48483.53
Show
48483.6348483.63 L 15 (EN 1253-1) 80 included Connection flange 48483.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48611.1148611.11 K 3 (EN 1253-1) 100 included Connection flange 48611.11
Show
48611.5148611.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48611.51
Show
48611.5348611.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48611.53
Show
48611.6348611.63 L 15 (EN 1253-1) 100 included Connection flange 48611.63
Show
48658.1148658.11 K 3 (EN 1253-1) 50 included Connection flange 48658.11
Show
48658.5148658.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48658.51
Show
48658.5348658.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48658.53
Show
48658.6348658.63 L 15 (EN 1253-1) 50 included Connection flange 48658.63
Show
48678.1148678.11 K 3 (EN 1253-1) 70 included Connection flange 48678.11
Show
48678.5148678.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48678.51
Show
48678.5348678.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48678.53
Show
48678.6348678.63 L 15 (EN 1253-1) 70 included Connection flange 48678.63
Show
48683.1148683.11 K 3 (EN 1253-1) 80 included Connection flange 48683.11
Show
48683.5148683.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48683.51
Show
48683.5348683.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48683.53
Show
48683.6348683.63 L 15 (EN 1253-1) 80 included Connection flange 48683.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48811.1148811.11 K 3 (EN 1253-1) 100 included Connection flange 48811.11
Show
48811.5148811.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48811.51
Show
48811.5348811.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48811.53
Show
48811.6348811.63 L 15 (EN 1253-1) 100 included Connection flange 48811.63
Show
48858.1148858.11 K 3 (EN 1253-1) 50 included Connection flange 48858.11
Show
48858.5148858.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48858.51
Show
48858.5348858.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48858.53
Show
48858.6348858.63 L 15 (EN 1253-1) 50 included Connection flange 48858.63
Show
48878.1148878.11 K 3 (EN 1253-1) 70 included Connection flange 48878.11
Show
48878.5148878.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48878.51
Show
48878.5348878.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48878.53
Show
48878.6348878.63 L 15 (EN 1253-1) 70 included Connection flange 48878.63
Show
48883.1148883.11 K 3 (EN 1253-1) 80 included Connection flange 48883.11
Show
48883.5148883.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48883.51
Show
48883.5348883.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48883.53
Show
48883.6348883.63 L 15 (EN 1253-1) 80 included Connection flange 48883.63
Show

Horizontal outlet

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48311.1148311.11 K 3 (EN 1253-1) 100 included Connection flange 48311.11
Show
48311.5148311.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48311.51
Show
48311.5348311.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48311.53
Show
48311.6348311.63 L 15 (EN 1253-1) 100 included Connection flange 48311.63
Show
48358.1148358.11 K 3 (EN 1253-1) 50 included Connection flange 48358.11
Show
48358.5148358.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48358.51
Show
48358.5348358.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48358.53
Show
48358.6348358.63 L 15 (EN 1253-1) 50 included Connection flange 48358.63
Show
48378.1148378.11 K 3 (EN 1253-1) 70 included Connection flange 48378.11
Show
48378.5148378.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48378.51
Show
48378.5348378.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48378.53
Show
48378.6348378.63 L 15 (EN 1253-1) 70 included Connection flange 48378.63
Show
48383.1148383.11 K 3 (EN 1253-1) 80 included Connection flange 48383.11
Show
48383.5148383.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48383.51
Show
48383.5348383.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48383.53
Show
48383.6348383.63 L 15 (EN 1253-1) 80 included Connection flange 48383.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48711.1148711.11 K 3 (EN 1253-1) 100 included Connection flange 48711.11
Show
48711.5148711.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48711.51
Show
48711.5348711.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48711.53
Show
48711.6348711.63 L 15 (EN 1253-1) 100 included Connection flange 48711.63
Show
48758.1148758.11 K 3 (EN 1253-1) 50 included Connection flange 48758.11
Show
48758.5148758.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48758.51
Show
48758.5348758.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48758.53
Show
48758.6348758.63 L 15 (EN 1253-1) 50 included Connection flange 48758.63
Show
48778.1148778.11 K 3 (EN 1253-1) 70 included Connection flange 48778.11
Show
48778.5148778.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48778.51
Show
48778.5348778.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48778.53
Show
48778.6348778.63 L 15 (EN 1253-1) 70 included Connection flange 48778.63
Show
48783.1148783.11 K 3 (EN 1253-1) 80 included Connection flange 48783.11
Show
48783.5148783.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48783.51
Show
48783.5348783.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48783.53
Show
48783.6348783.63 L 15 (EN 1253-1) 80 included Connection flange 48783.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48511.1148511.11 K 3 (EN 1253-1) 100 included Connection flange 48511.11
Show
48511.5148511.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48511.51
Show
48511.5348511.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48511.53
Show
48511.6348511.63 L 15 (EN 1253-1) 100 included Connection flange 48511.63
Show
48558.1148558.11 K 3 (EN 1253-1) 50 included Connection flange 48558.11
Show
48558.5148558.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48558.51
Show
48558.5348558.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48558.53
Show
48558.6348558.63 L 15 (EN 1253-1) 50 included Connection flange 48558.63
Show
48578.1148578.11 K 3 (EN 1253-1) 70 included Connection flange 48578.11
Show
48578.5148578.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48578.51
Show
48578.5348578.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48578.53
Show
48578.6348578.63 L 15 (EN 1253-1) 70 included Connection flange 48578.63
Show
48583.1148583.11 K 3 (EN 1253-1) 80 included Connection flange 48583.11
Show
48583.5148583.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48583.51
Show
48583.5348583.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48583.53
Show
48583.6348583.63 L 15 (EN 1253-1) 80 included Connection flange 48583.63
Show

Ecoguss project drain System 125


Vertical outlet

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48411.1148411.11 K 3 (EN 1253-1) 100 included Connection flange 48411.11
Show
48411.5148411.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48411.51
Show
48411.5348411.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48411.53
Show
48411.6348411.63 L 15 (EN 1253-1) 100 included Connection flange 48411.63
Show
48458.1148458.11 K 3 (EN 1253-1) 50 included Connection flange 48458.11
Show
48458.5148458.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48458.51
Show
48458.5348458.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48458.53
Show
48458.6348458.63 L 15 (EN 1253-1) 50 included Connection flange 48458.63
Show
48478.1148478.11 K 3 (EN 1253-1) 70 included Connection flange 48478.11
Show
48478.5148478.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48478.51
Show
48478.5348478.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48478.53
Show
48478.6348478.63 L 15 (EN 1253-1) 70 included Connection flange 48478.63
Show
48483.1148483.11 K 3 (EN 1253-1) 80 included Connection flange 48483.11
Show
48483.5148483.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48483.51
Show
48483.5348483.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48483.53
Show
48483.6348483.63 L 15 (EN 1253-1) 80 included Connection flange 48483.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48611.1148611.11 K 3 (EN 1253-1) 100 included Connection flange 48611.11
Show
48611.5148611.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48611.51
Show
48611.5348611.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48611.53
Show
48611.6348611.63 L 15 (EN 1253-1) 100 included Connection flange 48611.63
Show
48658.1148658.11 K 3 (EN 1253-1) 50 included Connection flange 48658.11
Show
48658.5148658.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48658.51
Show
48658.5348658.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48658.53
Show
48658.6348658.63 L 15 (EN 1253-1) 50 included Connection flange 48658.63
Show
48678.1148678.11 K 3 (EN 1253-1) 70 included Connection flange 48678.11
Show
48678.5148678.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48678.51
Show
48678.5348678.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48678.53
Show
48678.6348678.63 L 15 (EN 1253-1) 70 included Connection flange 48678.63
Show
48683.1148683.11 K 3 (EN 1253-1) 80 included Connection flange 48683.11
Show
48683.5148683.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48683.51
Show
48683.5348683.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48683.53
Show
48683.6348683.63 L 15 (EN 1253-1) 80 included Connection flange 48683.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48811.1148811.11 K 3 (EN 1253-1) 100 included Connection flange 48811.11
Show
48811.5148811.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48811.51
Show
48811.5348811.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48811.53
Show
48811.6348811.63 L 15 (EN 1253-1) 100 included Connection flange 48811.63
Show
48858.1148858.11 K 3 (EN 1253-1) 50 included Connection flange 48858.11
Show
48858.5148858.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48858.51
Show
48858.5348858.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48858.53
Show
48858.6348858.63 L 15 (EN 1253-1) 50 included Connection flange 48858.63
Show
48878.1148878.11 K 3 (EN 1253-1) 70 included Connection flange 48878.11
Show
48878.5148878.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48878.51
Show
48878.5348878.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48878.53
Show
48878.6348878.63 L 15 (EN 1253-1) 70 included Connection flange 48878.63
Show
48883.1148883.11 K 3 (EN 1253-1) 80 included Connection flange 48883.11
Show
48883.5148883.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48883.51
Show
48883.5348883.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48883.53
Show
48883.6348883.63 L 15 (EN 1253-1) 80 included Connection flange 48883.63
Show

Horizontal outlet

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48311.1148311.11 K 3 (EN 1253-1) 100 included Connection flange 48311.11
Show
48311.5148311.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48311.51
Show
48311.5348311.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48311.53
Show
48311.6348311.63 L 15 (EN 1253-1) 100 included Connection flange 48311.63
Show
48358.1148358.11 K 3 (EN 1253-1) 50 included Connection flange 48358.11
Show
48358.5148358.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48358.51
Show
48358.5348358.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48358.53
Show
48358.6348358.63 L 15 (EN 1253-1) 50 included Connection flange 48358.63
Show
48378.1148378.11 K 3 (EN 1253-1) 70 included Connection flange 48378.11
Show
48378.5148378.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48378.51
Show
48378.5348378.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48378.53
Show
48378.6348378.63 L 15 (EN 1253-1) 70 included Connection flange 48378.63
Show
48383.1148383.11 K 3 (EN 1253-1) 80 included Connection flange 48383.11
Show
48383.5148383.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48383.51
Show
48383.5348383.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48383.53
Show
48383.6348383.63 L 15 (EN 1253-1) 80 included Connection flange 48383.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48711.1148711.11 K 3 (EN 1253-1) 100 included Connection flange 48711.11
Show
48711.5148711.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48711.51
Show
48711.5348711.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48711.53
Show
48711.6348711.63 L 15 (EN 1253-1) 100 included Connection flange 48711.63
Show
48758.1148758.11 K 3 (EN 1253-1) 50 included Connection flange 48758.11
Show
48758.5148758.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48758.51
Show
48758.5348758.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48758.53
Show
48758.6348758.63 L 15 (EN 1253-1) 50 included Connection flange 48758.63
Show
48778.1148778.11 K 3 (EN 1253-1) 70 included Connection flange 48778.11
Show
48778.5148778.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48778.51
Show
48778.5348778.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48778.53
Show
48778.6348778.63 L 15 (EN 1253-1) 70 included Connection flange 48778.63
Show
48783.1148783.11 K 3 (EN 1253-1) 80 included Connection flange 48783.11
Show
48783.5148783.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48783.51
Show
48783.5348783.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48783.53
Show
48783.6348783.63 L 15 (EN 1253-1) 80 included Connection flange 48783.63
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
48511.1148511.11 K 3 (EN 1253-1) 100 included Connection flange 48511.11
Show
48511.5148511.51 K 3 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48511.51
Show
48511.5348511.53 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48511.53
Show
48511.6348511.63 L 15 (EN 1253-1) 100 included Connection flange 48511.63
Show
48558.1148558.11 K 3 (EN 1253-1) 50 included Connection flange 48558.11
Show
48558.5148558.51 K 3 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48558.51
Show
48558.5348558.53 L 15 (EN 1253-1) 50 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48558.53
Show
48558.6348558.63 L 15 (EN 1253-1) 50 included Connection flange 48558.63
Show
48578.1148578.11 K 3 (EN 1253-1) 70 included Connection flange 48578.11
Show
48578.5148578.51 K 3 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48578.51
Show
48578.5348578.53 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48578.53
Show
48578.6348578.63 L 15 (EN 1253-1) 70 included Connection flange 48578.63
Show
48583.1148583.11 K 3 (EN 1253-1) 80 included Connection flange 48583.11
Show
48583.5148583.51 K 3 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48583.51
Show
48583.5348583.53 L 15 (EN 1253-1) 80 included Enclosed sealing collar to be glued (bd) according to DIN 18534 48583.53
Show
48583.6348583.63 L 15 (EN 1253-1) 80 included Connection flange 48583.63
Show

Doğru ürünü bulamadınız mı?

Standart süzgeçlerimize ve kanallarımıza ek olarak müşterinin talebi üzerine biçim, fonksiyon ve boyut açısından özel talepler için müşteriye özel çözümler de geliştiriyoruz.

Bireysel çözümler
