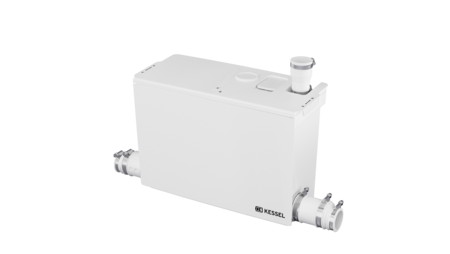

Lifting station Minilift M
GTF 750-S3 230V
KESSEL Lifting station Minilift M, wastewater without sewage, free-standing installation, with a submersible GTF 750-S3 pump, operating mode S3 - 15 %
- Tool-free maintenance
- Adjustable pumping volume depending on application
- Lifelong availability of spare parts
| Item no. | 28565 |
|---|---|
| GTIN | 4026092111628 |
| Price group | 15 |
Lifting station Minilift M GTF 750-S3 230V
The plug-in ready Minilift M small lifting station is suitable for the disposal of domestic wastewater, ideal for connecting a shower, washbasin, bathtub, dishwasher, washing machine and air conditioning system. The submersible pump with float switch can be removed without the use of tools. The pumping volume can be adjusted by means of the adjustable float switch and can therefore be optimally adapted for all requirements. Due to its compact design, the system is ideal for all locations, for free-standing setup or behind a false wall. With a maximum low inlet on each side of the tank in size DN40 or DN50, it is ideally suited for connecting flat shower trays. A vertical inlet is available in size DN40. The simple and tool-free handling ensures fast installation and flexible use. - Resistant to hot water - Discharge-side backflow preventer integrated in the factory - Powerful pump with multi-vane vortex impeller for maximum operating safety - Tool-free maintenance - Extremely quiet pump operation Variant Type of system: Single unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: white Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: plug-in ready Cable length: 1,4 m Dimensions Net weight: 7,52 kg Gross weight: 8,52 kg Length: 410 mm Width: 170 mm Height: 285 mm Packaging dimension: length: 455 mm Packaging dimension: width: 227 mm Packaging dimension: height: 387 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Distance pipe bottom outlet to tank bottom: 285 mm Distance pipe bottom inlet to tank bottom: 13 mm Tank volume: 11,75 l Pumping device Pump: GTF 750-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 44 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 9,7 m³/h Max. pumping height: 10,4 m Speed: 2700 U/min Power P1: 0,75 kW Power P2: 0,46 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 1.4 m Rated current: 3,5 A Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Replacement pump GTF 750-S3 Wet installation, Float Switch, 230 V | 681263 | Show |
 | Inlet covers horizontal for Minilift | 681272 | Show |
 | Impeller for Minilift M | 681280 | Show |
 | Spiral housing for Minilift M | 681281 | Show |
 | Float switch for Minilift M/M WC | 681282 | Show |
 | Cover for Minilift M/M WC | 681283 | Show |
 | Pressure pipe connection for Minilift M/M WC | 681284 | Show |
 | Pressure pipe connection grommet for Minilift M/M WC | 681285 | Show |
 | Capacitor for Minilift M/M WC | 681286 | Show |
 | Inlet cover vertical for Minilift | 681308 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance | |
| Declaration of Conformity |
- Installation situation (einbausituation):
free-standing installation
- Type of wastewater (abwasserart_de):
without sewage
