Lifting station Aqualift F Comp.
Duo, SPZ 1000, Floor sl., tileable

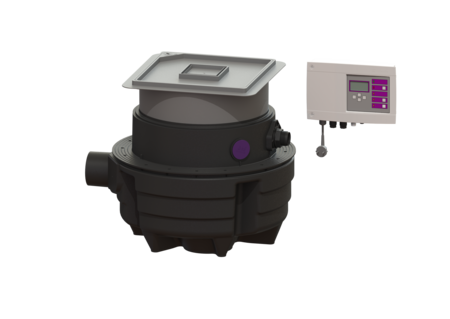

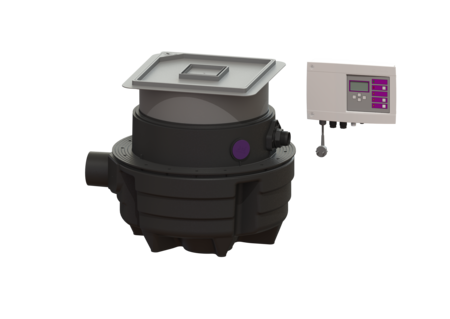

KESSEL Lifting station Aqualift F Comp. Duo, wastewater with sewage, type of cover tileable cover plate, floor slab installation, installation depth 490 - 600 mm, with 2 submersible SPZ 1000 pumps
- Suitable for complete basement drainage
- Integrated drainage function when installed in the floor slab
- Maximum operating reliability due to intelligent control unit (Duo)
Item no. | 28704X |
---|---|
GTIN | 4026092093399 |
Price group | 20 |
Lifting station Aqualift F Comp. Duo, SPZ 1000, Floor sl., tileable
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Shut-off valve: without shut-off valve Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-484 System type: Duo Odour trap: Multistop Dimensions Net weight: 44,2 kg Gross weight: 46 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 800 mm Cutout dimension, length: 800 mm Installation depth: 490 - 600 mm Type of height adjustability: vertically adjustable upper section Length: 670 mm Width: 590 mm Packaging dimension: length: 620 mm Packaging dimension: width: 620 mm Packaging dimension: height: 1030 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 50 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 351 mm Distance pipe bottom outlet to tank bottom: 351 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 40 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Max. flooring height: 16 mm Pumping device Pump: SPZ 1000 Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): Fuse protection through control unit 230 V
