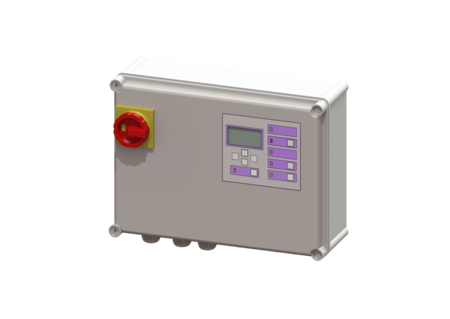

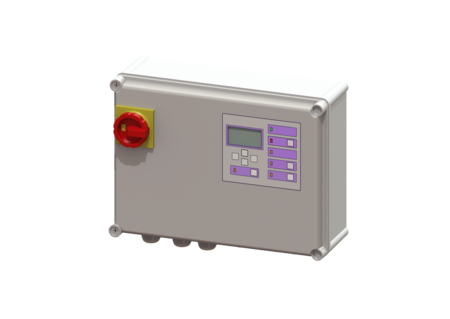

Control unit Comfort Plus
Mono/Duo, 400 V, (2x)2,5-4,0 A
Control unit with optical and acoustic warning device
| Item no. | 28786 |
|---|---|
| GTIN | 4026092066355 |
| Price group | 20 |
Control unit Comfort Plus Mono/Duo, 400 V, (2x)2,5-4,0 A
Control unit with optical and acoustic warning device General characteristics Colour: grey Dimensions Net weight: 5,5 kg Gross weight: 6,65 kg Packaging dimension: length: 650 mm Packaging dimension: width: 405 mm Packaging dimension: height: 220 mm Pumping device Connection type: Direct connection Type of fuse required (electrical protection): C 16 A Rated current: 2,5 - 4 A Control Control unit: Comfort Plus Motor protection switch: yes Standby power: 5 W Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Test Reports and Certificates | |
| Declaration of Conformity |
- Control unit (schaltgeraet):
Comfort Plus
