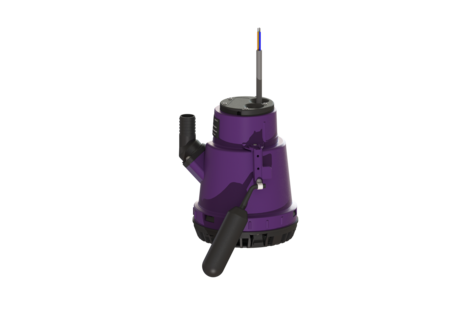

Aquadive KTP 300 submersible pump
resistant, with float switch, 10 m
KESSEL Aquadive KTP 300 submersible pump, wastewater without sewage, IP 68, level measurement mechanical, operating mode S1, volume 17,58 dm³, pumping height 6 m
- Multi-vane vortex impeller for maximum reliability
- Longitudinally watertight potted connection cable
- Integrated shallow extraction
Item no. | 28840C |
---|---|
GTIN | 4026092093634 |
Price group | 20 |
Aquadive KTP 300 submersible pump resistant, with float switch, 10 m
KTP 300 submersible pump with float switch, with non-return flap, pivoted connection, removable intake cage; the water level can be lowered to 8 mm. Variant Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backflow preventer: integrated General characteristics Type of wastewater: without sewage Dimensions Net weight: 4,45 kg Gross weight: 4,81 kg Length: 275 mm Width: 390 mm Height: 216 mm Packaging dimension: length: 260 mm Packaging dimension: width: 260 mm Packaging dimension: height: 260 mm Pumping device Pump: KTP 300 resistant Number of pumps: 1 Weight, pump: 4 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 1,9 A Protection class: I Insulation class: F Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping height: 6 m Speed: 2800 U/min Power P1: 0,34 kW Power P2: 0,21 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 10 m Control Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
CAD Data | |
---|---|
Declaration of Performance | |
Declaration of Conformity |
- Type of wastewater (abwasserart_de): without sewage
- Pump (pumpe): KTP 300 resistant
- Operating voltage (betriebsspannung): 230 V
- Type of level measurement (niveauerfassung_art): mechanical
