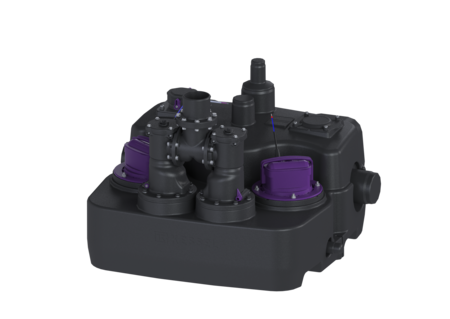

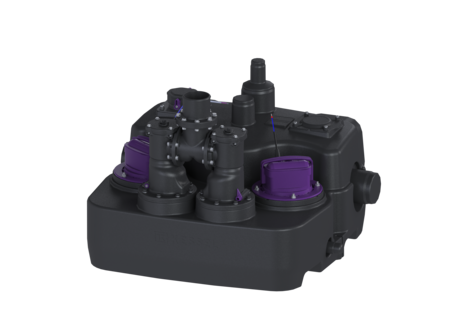

Lifting station Aqualift L
Duo, SPF 2900-S3, 400 V
KESSEL Lifting station Aqualift L Duo, wastewater for wastewater with and without sewage, control unit Connect control unit function With alarm message, duo pump, with 2 submersible SPF 2900 pumps, Freestanding pump
Item no. | 28897 |
---|---|
GTIN | 4026092107393 |
Price group | 20 |
Lifting station Aqualift L Duo, SPF 2900-S3, 400 V
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has a closed pump tank with a screwed-on access cover. The station is controlled by a user-friendly control unit. Variant Type of system: duo pump Installation: Dry installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: for wastewater with and without sewage Installation situation: free-standing installation Delivery state: installation-ready System type: Duo Dimensions Net weight: 50 kg Gross weight: 57 kg Length: 764 mm Width: 864 mm Height: 610 mm Packaging dimension: length: 864 mm Packaging dimension: width: 764 mm Packaging dimension: height: 610 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet nominal size (DN): 100 mm Number of inlets: 3 Pumping volume: 50 l Tank volume: 120 l Socket version: including spigot and socket Pumping device Pump: SPF 2900 Number of pumps: 2 Weight, pump: 10,5 kg Operating voltage: 400 V Rated current: 5 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 44 m³/h Max. pumping height: 14 m Speed: 2700 U/min Power P1: 3,1 kW Power P2: 2,4 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C_20_A Type of pump connection cable: H07RN8-F 6G 1 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Connect Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Length of mains cable for control unit: 5 m Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): no Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C_20_A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Flexible coupling DN 32, L: 200 mm | 28660 | Show | |
Flexible coupling DN 70, L: 200 mm | 28661 | Show | |
Flexible coupling DN 80, L: 200 mm | 28662 | Show | |
Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show | |
Manual diaphragm pump for manual pumping of wastewater | 28680 | Show | |
Shut-off valve DN 80, Polymer, horizontal | 28682 | Show | |
Shut-off valve DN 100, Polymer, horizontal | 28683 | Show | |
Shut-off valve DN 100, Polymer | 28698 | Show | |
Shut-off valve DN 150, Polymer | 28699 | Show | |
Flange joint DN 100, for polymer fittings | 28712 | Show | |
Shut-off valve DN 80, Polymer, vertical | 28715 | Show | |
Hole saw for DN 100/125/150 | 500100 | Show | |
Hole saw for DN 50/70/100 | 500101 | Show | |
Potential-free contact Extension set for control units Basic | 80074 | Show | |
Seal for pipe penetration, DN 50 | 850114 | Show | |
Seal for pipe penetration, DN 70 | 850116 | Show | |
Seal for pipe penetration, DN 100 | 850117 | Show | |
Seal for pipe penetration, DN 125 | 850118 | Show | |
Seal for pipe penetration, DN 150 | 850119 | Show |
Title | Item no. | ||
---|---|---|---|
Flexible coupling DN 80, L: 200 mm | 28662 | Show | |
Flange joint DN 80, for polymer fittings | 28713 | Show | |
Pump flange with seal and screws | 680537 | Show | |
Cleaning cover with seal | 680538 | Show | |
Float switch set with seal | 680539 | Show | |
Seal set 3 x DN 100, 1 x DN 125 | 680540 | Show | |
Non-return flap with bracket | 680548 | Show | |
Seal for flange, d: 236 mm | 680549 | Show |
Manuals | |
---|---|
CAD Data | |
Declaration of Performance | |
Declaration of Conformity |
- Installation situation (einbausituation): free-standing installation
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): for wastewater with and without sewage
- Pump (pumpe): SPF 2900
- Operating voltage (betriebsspannung): 400 V
