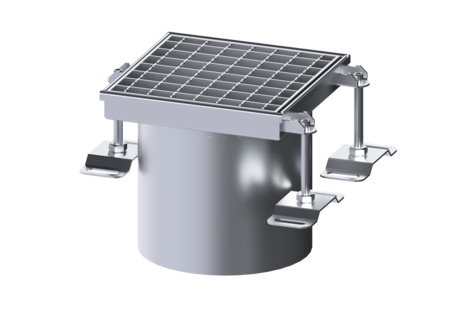

Upper section Ferrofix
w/o glued flange, 206x206mm, grate, L 15
KESSEL Upper section Ferrofix w/o glued flange, 206x206mm, grate, L 15, surface, type of cover Slotted cover, locking, design cover, Cover Stainless steel 14301
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 55134 |
|---|---|
| GTIN | 4026092107591 |
| Price group | 70 |
Upper section Ferrofix w/o glued flange, 206x206mm, grate, L 15
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. Variant System: 185 General characteristics Standard: EN 1253-1 Dimensions Net weight: 2 kg Gross weight: 3 kg Length: 206 mm Width: 206 mm Height: 200 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 206 mm
- Width (breite): 206 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
