Upper section Ferrofix
w/o glued flange, 300x300mm, insert,L 15
KESSEL Upper section Ferrofix w/o glued flange, 300x300mm, insert,L 15, surface, type of cover Ladder grating, locking, design cover, Cover Stainless steel 14301
- Made of a particularly hygienic and mechanically highly resistant stainless steel
- Multiple combinations with suitable drain bodies
| Item no. | 55141 |
|---|---|
| GTIN | 4026092107669 |
| Price group | 70 |

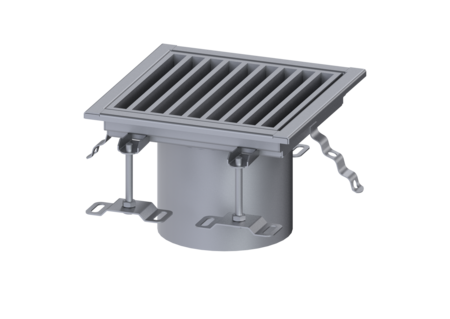

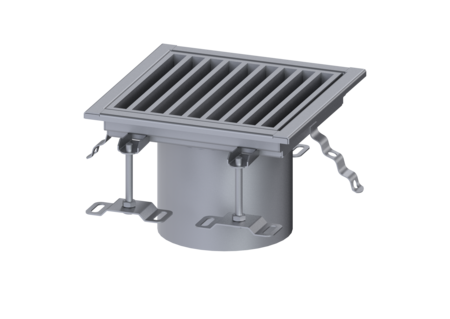

Upper section Ferrofix w/o glued flange, 300x300mm, insert,L 15
Used in combination with a drain body of the KESSEL modular system 185, the stainless steel upper section is suitable for indoor point drainage. Variant System: 185 General characteristics Standard: EN 1253-1 Dimensions Net weight: 9,6 kg Gross weight: 9,6 kg Length: 300 mm Width: 300 mm Height: 200 mm Packaging dimension: length: 365 mm Packaging dimension: width: 360 mm Packaging dimension: height: 365 mm Coverage features Type of cover: Ladder grating Cover material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Grating material: 304 stainless steel Shape of upper section: square Upper section material: Stainless steel 14301 Cover Grating material: 304 stainless steel
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Ladder grating
- Length (laenge): 300 mm
- Width (breite): 300 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
