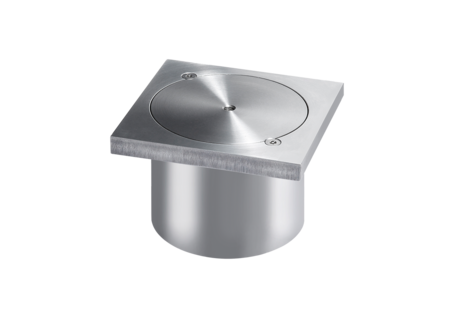

Cleanout
Sys 125, Hyg upper section, screwed
KESSEL Ferrofix cleanout, surface, length 150 mm, width 150 mm, type of cover Hygiene upper section, Cover Stainless steel 14301
| Item no. | 59013 |
|---|---|
| GTIN | 4026092103470 |
| Price group | 70 |
Cleanout Sys 125, Hyg upper section, screwed
The cleanout, made of polymer with grating and frame made of stainless steel, serves as an upper section for direct connection on pipes and is equipped with a closed, screwed cover plate. Variant System: 125 Dimensions Net weight: 3 kg Gross weight: 3,1 kg Length: 150 mm Width: 150 mm Height: 100 mm Packaging dimension: length: 150 mm Packaging dimension: width: 150 mm Packaging dimension: height: 100 mm Coverage features Type of cover: Hygiene upper section Cover material: Stainless steel 14301 Height of cover: 15 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: gastight and liquid-tight Rim width: 150 mm Rim length: 150 mm Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Hygiene upper section
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck):
