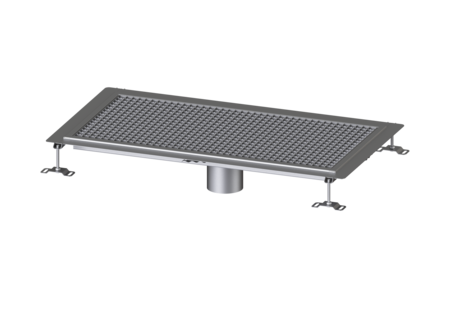

Floor Tray Ferrofix
glued flange H: 6mm, 500x1000mm
KESSEL Floor Tray Ferrofix, nominal size (DN) 125, Glued flange height 6 mm, width 500 mm, length 1000 mm, type of cover Slotted cover, socket, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers), outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6250100 |
|---|---|
| GTIN | 4026092099339 |
| Price group | 80 |
Floor Tray Ferrofix glued flange H: 6mm, 500x1000mm
The Ferrofix floor tray made of stainless steel with a material thickness of 1.5 mm (pickled in the immersion bath) is equipped with ground crosspieces, longitudinal and transverse gradients, feet for height adjustment and stainless steel outlet nozzles The channel profile is suitable for thin-layered floorings (e.g. epoxy resin) and has an all-round adhesive rim (6 mm deep and 50 mm folded outwards) with welded mitres. The glued flange is also suitable for connecting waterproofing. Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) General characteristics Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 6 mm Dimensions Length: 1000 mm Width: 500 mm Height: 60 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): Slotted cover
- Length (laenge): 1.000 mm
- Width (breite): 500 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
- (oberflaeche):
