Upper section, gutter drain

Protective pipe DN 100, closed cover

67750
PDF product data sheet

KESSEL Upper section, gutter drain Protective pipe DN 100, closed cover, black Polymer

Item no. 67750
GTIN 4026092001714
Price group 10

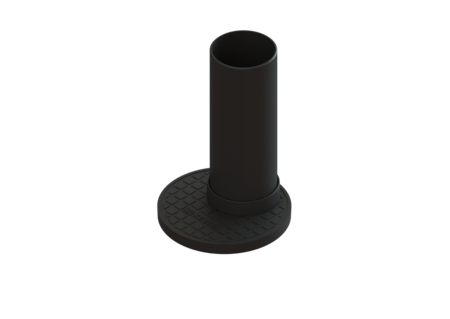

    Upper section, gutter drain Protective pipe DN 100, closed cover
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for use as a gutter drain. The upper section consists of a rain inlet cover and a protective pipe. General characteristics Colour: black Material: Polymer Nominal size (DN): 100 Dimensions Net weight: 0,69 kg Gross weight: 0,73 kg Diameter: 218 mm Length: 218 mm Width: 218 mm Packaging dimension: length: 295 mm Packaging dimension: width: 230 mm Packaging dimension: height: 175 mm Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    850134 Slotted cover round, d: 362 mm, Polymer 850134 Show
    CAD Data
    • Nominal size (DN) (nennweite): 100
    • Material (material): Polymer
    • Cover material (abdeckung_material): Polymer
