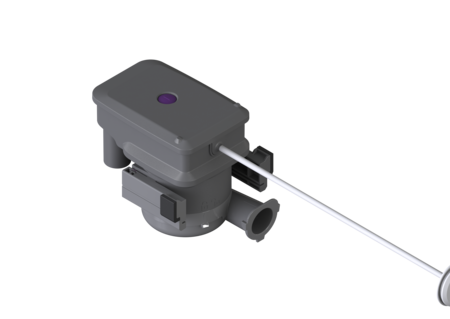

Replacement pump GTF 250-S3
Wet installation, Float Switch, 230 V
Replacement pump GTF 250-S3 for Minilift S, Wet installation, Float Switch, 230 V
| Item no. | 681262 |
|---|---|
| GTIN | 4026092111888 |
| Price group | 90 |
Replacement pump GTF 250-S3 Wet installation, Float Switch, 230 V
Replacement pump GTF 250-S3 for Minilift S, Wet installation, Float Switch, 230 V General characteristics Cable length: 1,4 m Pumping device Pump: GTF 250-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 6,5 m³/h Max. pumping height: 5,8 m Speed: 2700 U/min Power P1: 0,25 kW Power P2: 0,15 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 1.4 m Rated current: 1,2 A Control Connection type: Schuko (earthed contact) 2-pin
