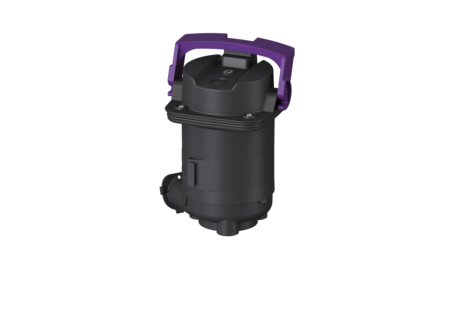

Replacement pump SPZ 750-S3
Dry installation, Tronic, 230 V
Replacement pump SPZ 750-S3 for Minilift L WC/Duo, Dry installation, Tronic, 230 V
| Item no. | 681265 |
|---|---|
| GTIN | 4026092111918 |
| Price group | 90 |
Replacement pump SPZ 750-S3 Dry installation, Tronic, 230 V
Replacement pump SPZ 750-S3 for Minilift L WC/Duo, Dry installation, Tronic, 230 V General characteristics Cable length: 1,4 m Pumping device Pump: SPZ 750-S3 Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Protection class: I Protection class (pump): IP 44 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 35 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 9,8 m³/h Max. pumping height: 9 m Speed: 2700 U/min Power P1: 0,75 kW Power P2: 0,46 kW Operating mode: S3 - 15 % Type of pump connection cable: H05VV-F 3G 0,75 mm² Impeller type: Macerator Length of mains cable for pump: 1.4 m Rated current: 3,5 A Control Connection type: Schuko (earthed contact) 2-pin
