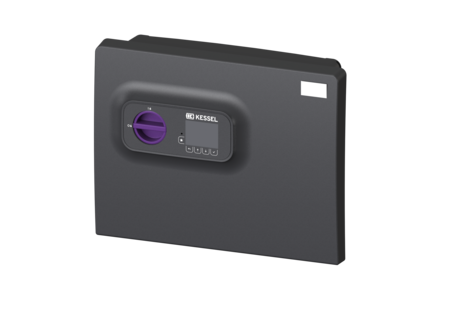

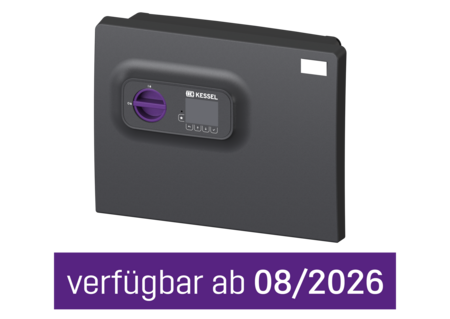

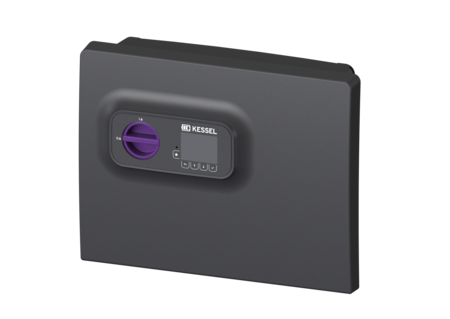

Control unit Connect Pro
Mono, 400V

Connect Pro control unit for lifting stations, pumping stations and EasyClean ground Multi. Suitable for 400V single stations without ATEX requirements. Optional connection options for float switch, optical alarm probe and level probe. User-friendly menu navigation with multi-line display. Menu navigation in 15 languages. Connection via a web server with a 2nd screen for reading out the log book, setting parameters and uploading Firmware and language files. Setting of the connected system using manual input or the appropriate firmware file on the product-specific homepage. Simple changeover to manual mode and adjustment of function-relevant parameters. Self-diagnostic system (SDS) for monitoring pumps, sensors and battery buffering. An optical and acoustic alarm is signalled in the event of improper installation or malfunctions. Forwarding of a collective fault and alarm message via parameterisable optional potential-free contact or Modbus LTE gateway. The Modbus interface is also optionally available to a BMS. A SonicControl sensor can also be connected to the control unit.
| Item no. | 681352 |
|---|---|
| GTIN | 4026092113318 |
| Price group | 90 |
Control unit Connect Pro Mono, 400V
Connect Pro control unit for lifting stations, pumping stations and EasyClean ground Multi. Suitable for 400V single stations without ATEX requirements. Optional connection options for float switch, optical alarm probe and level probe. User-friendly menu navigation with multi-line display. Menu navigation in 15 languages. Connection via a web server with a 2nd screen for reading out the log book, setting parameters and uploading Firmware and language files. Setting of the connected system using manual input or the appropriate firmware file on the product-specific homepage. Simple changeover to manual mode and adjustment of function-relevant parameters. Self-diagnostic system (SDS) for monitoring pumps, sensors and battery buffering. An optical and acoustic alarm is signalled in the event of improper installation or malfunctions. Forwarding of a collective fault and alarm message via parameterisable optional potential-free contact or Modbus LTE gateway. The Modbus interface is also optionally available to a BMS. A SonicControl sensor can also be connected to the control unit. Variant Series: Type of system: Single unit General characteristics Colour: stone grey System type: Mono Dimensions Net weight: 3,74 kg Gross weight: 4,79 kg Packaging dimension: length: 480 mm Packaging dimension: width: 355 mm Packaging dimension: height: 160 mm Control Control unit: Connect Pro Alarm sensor: yes Operating voltage: 400 V Potential-free contact: yes (2) USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (control unit): C 16 A Rated current: 9 A Motor protection: yes (electronically) : yes Ext. audible alarm: yes Second Screen: yes (Wi-Fi) SonicControl Option: yes : yes Mains frequency: 50/60 Hz Power standby: 3,0 W Output power: 6,2 kW
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Data Sheet | |
|---|---|
| Manuals | |
| Test Reports and Certificates |
