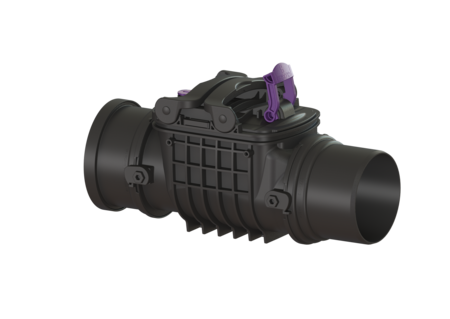

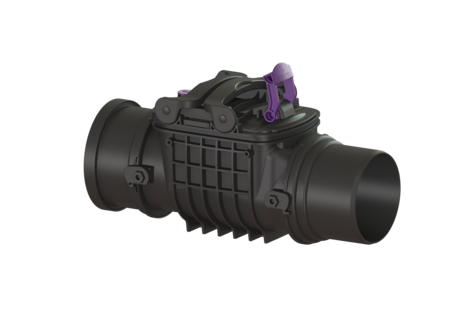

Backwater valve Staufix

DN 150, exposed, Type 2 R

730150R
PDF product data sheet

KESSEL Backwater valve Staufix, nominal size (DN) 150, wastewater for wastewater with or without sewage (ÖNORM Austria), cover locking One-handed closure, exposed drainage pipe, type of cover Lockable cover, yes

  • Optional rat protection flap for additional safety
  • Flexible installation, various covers available for floor slab installation
  • Alternatively available as a module set
Item no. 730150R
GTIN 4026092076521
Price group 10

Backwater valve Staufix DN 150, exposed, Type 2 R
The backwater valve for wastewater with and without sewage (ÖNORM Austria) is equipped with two mechanical flaps that close automatically in the event of backwater. One flap also serves as a manually lockable emergency closure. Thanks to the modular KESSEL system, existing systems can be easily converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: yes Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: for wastewater with or without sewage (ÖNORM Austria) Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 2 Dimensions Net weight: 3,32 kg Gross weight: 5,9 kg Vertical drop between inlet and outlet: 8 mm Length: 523 mm Width: 216 mm Height: 306 mm Packaging dimension: length: 524 mm Packaging dimension: width: 222 mm Packaging dimension: height: 265 mm Coverage features Type of cover: Lockable cover Cover locking: One-handed closure
  Title Item no.
  Title Item no.
  Title Item no.
72222 Remote signal generator optical/acoustic. signal in backwater 72222 Show
72223 Radio receiver as switched socket 72223 Show
72224 Lockable cover StaufixControl, DN 90 - 100 72224 Show
72225 Lockable cover StaufixControl, DN 125 - 200 72225 Show
  Title Item no.
680665 Battery 3 V for control unit 680665 Show
686113 Seal Cover seal for Staufix, DN 125-200 686113 Show
70214 Testing funnel with seal 70214 Show
70232 Backwater flap DN 125/150 70232 Show
70234 Backwater flap DN 125/150, with stainl steel attachment 70234 Show
70242 Slide-in flap housing DN 125/150, with seal 70242 Show
72230 Lockable cover DN125-200, with emergency closure 72230 Show
83083 Spigot DN 150, with seal 83083 Show
83087 Socket DN 150, with seal 83087 Show
  • Nominal size (DN) (nennweite): 150
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Length (laenge): 523  mm
  • Width (breite): 216  mm
  • Backwater protection (rueckstauschutz): Type 2
  • Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): yes
