Drain body, yard/gutter drain
closed, d: 450 mm
KESSEL Drain body, yard/gutter drain, drainage by Point drain, socket optional, drain body Polymer
- Variable solution for the connection to the sewer
- For easy underground installation
| Item no. | 850008 |
|---|---|
| GTIN | 4026092002919 |
| Price group | 60 |

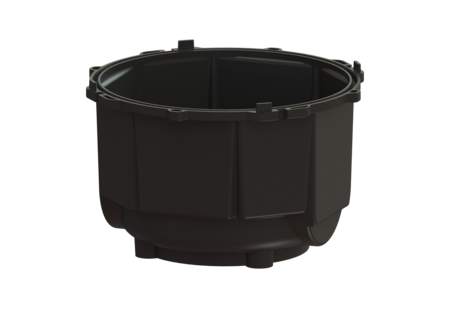

Drain body, yard/gutter drain closed, d: 450 mm
The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap. General characteristics Nominal size (DN): - Dimensions Net weight: 3,9 kg Gross weight: 3,9 kg Length: 518 mm Width: 518 mm Height: 308 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 330 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: optional
| Title | Item no. | ||
|---|---|---|---|
 | Adapter d: 450 mm, with seal | 850102 | Show |
 | Adapter d: 358 mm, with seal | 850103 | Show |
 | Seal d: 368 mm | 850112 | Show |
 | Seal d: 458 mm | 850113 | Show |
 | Upper section height-adjustable, cl. A/B | 850120 | Show |
 | Upper section height-adjustable, cl. D | 850121 | Show |
 | Cover plate Grey iron, Class B | 850131 | Show |
 | Cover plate Polymer, Load class A | 850132 | Show |
 | Slotted cover round, d: 362 mm, Polymer | 850134 | Show |
 | Slotted cover round, d: 362 mm, Grey iron | 850135 | Show |
 | Cover plate made of grey cast iron (GG), Class D | 850136 | Show |
 | Slotted cover round, d: 395 mm, Grey iron | 850137 | Show |
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Hole saw for DN 100/125/150 | 500100 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
 | Pressure sealing flange f. upper sect. LW400 in waterrpr. conc. | 83021 | Show |
 | Membrane for System 400, Waterproof concrete | 83022 | Show |
 | Extension section System 400, Polymer | 850101 | Show |
 | Connection wed Polymer, 4 each | 850111 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Sludge bucket System 400, Polymer | 850115 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Seal for pipe penetration, DN 125 | 850118 | Show |
 | Seal for pipe penetration, DN 150 | 850119 | Show |
| Title | Item no. |
|---|
- Material of drain body (material_grundkoerper):
Polymer
- Nominal size (DN) (nennweite): -
- Socket version (stutzen_ausfuehrung): optional
- (auslauf_nennweite_dn):
