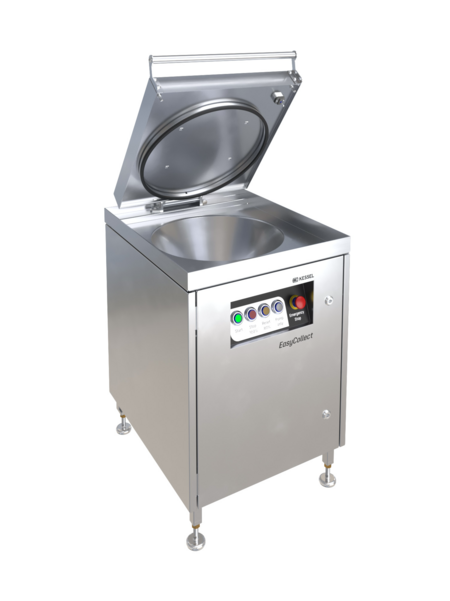

The KESSEL EasyCollect food waste disposal station is designed for the hygienic and efficient grinding of food waste and kitchen waste in commercial kitchens.
The centrifugal grinding unit, with its powerful 2.2 kW motor, reliably grinds the food waste. This is then conveyed to the KESSEL collection tank by the integrated feed pump.
The automatic, adjustable process water supply optimally supports the grinding and conveying process.
For maximum operational safety, the disposal station is equipped with a mechanical safety and locking mechanism. The lid with integrated seal forms a reliable hygiene barrier.
The EasyCollect disposal station also features a collection tank fill level indicator at 80% and 100% (in combination with a fill level sensor – item no. 97051). When the tank is full (100%), the disposal station stops automatically to ensure safe and trouble-free operation.
A release key for the grinding unit is included in the scope of delivery.
Variant
Processing volume: 1000 kg/Stunde im Chargenbetrieb
Connections
Cold water connection: R ¾" external thread
Connection to pressure pipe: PE screw connection, transitioning to PE OD 50; SDR 11/PN 16
Electricity: 400 V CEE plug
Electrical data
Operating voltage: 400 V
Mains frequency: 50 Hz
Type of fuse required: C 16 A
Grinding performance: 0,55 kW
Pump capacity: 2,2 kW
Connection type: CEE plug
Protection class: IP X5
General characteristics
Material: Stainless steel 14301
Installation situation: free-standing installation
Dimensions
Vertical adjustment: 930 - 978 mm
Length: 740 mm
Width: 600 mm
Height: 930 mm
Ground clearance: 121 - 169 mm
Feed hopper filling volume: 28 l
