Gutter drain

DN 100, Vertical outlet, System 200

67940
PDF product data sheet

KESSEL Gutter drain, System 200, nominal size (DN) 100, load class K 3, outside diameter (OD) 110 mm, discharge rate (l/s) 4,5, outlet vertical, socket vertical, shape of upper section round

  • The variable solution for connecting to the sewer
Item no. 67940
GTIN 4026092001783
Price group 10

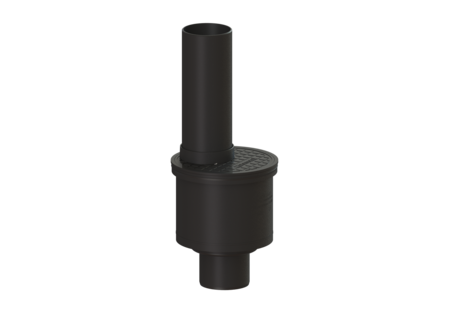

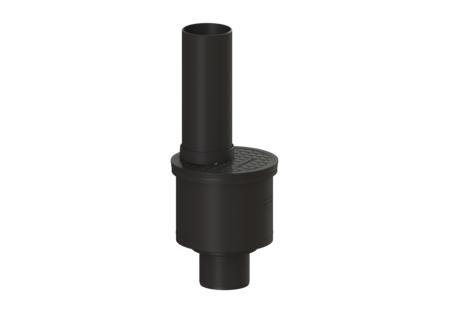

    Gutter drain DN 100, Vertical outlet, System 200
    The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening. Variant System: 200 Contents of sludge trap: yes Discharge rate (l/s) with 20 mm threshold: 4,5 Outlet: vertical General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Outlet: vertical Odour trap: no Dimensions Net weight: 2 kg Gross weight: 2,27 kg Diameter: 235 mm Length: 235 mm Width: 235 mm Height: 580 mm Packaging dimension: length: 330 mm Packaging dimension: width: 240 mm Packaging dimension: height: 405 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: vertical Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black Surface: EDM Load class: K 3 (EN 1253-1) Shape of upper section: round Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    67500 Extension section System 200, Polymer 67500 Show
    67600 Extension section System 200, Side inlet DN 100 67600 Show
      Title Item no.
    67040 Drain body, yard/gutter drain DN 100, Vertical outlet 67040 Show
    67300 Sludge bucket System 200, PE-HD 67300 Show
    67750 Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    67800 Wall mounting Polymer, for gutter drains 67800 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Socket version (stutzen_ausfuehrung): vertical
    • Type of cover (abdeckungsart): Rain drain cover
    • Odour trap (geruchsverschluss): no
    • Contents of sludge trap (schlammeimer): yes
